1️⃣ Search Intent Introduction
This guide addresses mining engineers, landfill operators, construction managers, and geotechnical engineers designing liner systems for areas subject to heavy equipment traffic.
The core engineering decision involves selecting HDPE geomembrane thickness (1.5mm vs 2.0mm vs 2.5mm) based on equipment weight, traffic frequency, subgrade conditions, and 10-20 year service life expectations .
Unlike static containment, heavy equipment traffic areas create extreme puncture and abrasion loads from tires, tracks, and undercarriage components. Standard 1.0mm liners fail rapidly under heavy equipment.
Search intent is specification-level decision support for traffic area liner design.
Real-world stress conditions unique to heavy equipment traffic areas:
- High contact pressure: Tires (500-800 kPa), tracks (100-300 kPa), outriggers (1,000-2,000 kPa)
- Abrasion: Turning and braking creates wear on liner surface
- Puncture: Sharp rocks on equipment undercarriage or tracked vehicles
- Repetitive loading: Multiple passes cause fatigue damage
- Point loads: Outriggers, stabilizers, and crane pads concentrate loads
- Dynamic loads: Acceleration, braking, and turning increase effective pressure
Equipment Weight vs HDPE Thickness Quick Reference
| Equipment Type | Typical Weight | Contact Pressure | Recommended Thickness | Geotextile |
|---|---|---|---|---|
| Forklifts, skid steers | <10 tons | <500 kPa | 1.5mm | 600 gsm |
| Loaders, graders | 10-20 tons | 500-600 kPa | 1.5-2.0mm | 600-800 gsm |
| Heavy loaders | 20-50 tons | 600-800 kPa | 2.0mm | 800-1,000 gsm |
| Haul trucks | 50-100 tons | 700-900 kPa | 2.5mm | 1,000 gsm |
| Crawler dozers | 30-100 tons | 100-300 kPa (tracks) | 2.5mm + sand cushion | 1,000 gsm |
| Crane outriggers | 50-200 tons | 1,000-2,000 kPa | 2.5mm + concrete pad | 1,000 gsm |
Critical insight: Geotextile weight is as important as HDPE thickness. Without geotextile, 1.5mm fails within 6 months under 40-ton loader traffic.
Key Data: Heavy equipment traffic requires 1.5-2.5mm HDPE with heavy geotextile protection (600-1,000 gsm). Light equipment (<20 tons): 1.5mm. Heavy haul trucks (50-100 tons): 2.0-2.5mm. Extreme loads: 2.5mm + sand cushion.
📋 Executive Summary — For Engineers in a Hurry
- Light equipment (<20 tons): 1.5mm HDPE + 600 gsm geotextile
- Medium equipment (20-50 tons): 2.0mm HDPE + 800 gsm geotextile
- Heavy equipment (50-100 tons): 2.5mm HDPE + 1,000 gsm geotextile
- Extreme loads (cranes, dozers >100 tons): 2.5mm HDPE + 1,000 gsm + 150mm sand cushion
- HP-OIT ≥ 400 minutes (ASTM D5885) — standard OIT insufficient for UV exposure
- NCTL ≥ 1,000 hours (ASTM D5397) — stress crack resistance critical under repetitive loading
- Geotextile is MANDATORY — 200-300 gsm used for soil is inadequate; specify 600-1,000 gsm
- Critical failure mode: Puncture and abrasion — not chemical attack or UV degradation
2️⃣ Common Engineering Questions About HDPE in Heavy Equipment Traffic Areas
Q1: What is the minimum HDPE thickness for heavy equipment traffic?
1.5mm for light equipment (<20 tons). 2.0mm for medium equipment (20-50 tons). 2.5mm for heavy equipment (50-100 tons) .
Q2: Is geotextile required under HDPE for heavy equipment traffic?
YES — mandatory. 200-300 gsm used for soil subgrade is inadequate. Specify 600-1,000 gsm nonwoven geotextile for heavy equipment areas.
Q3: Can 1.0mm HDPE withstand heavy equipment traffic?
No. 1.0mm lacks sufficient puncture resistance for heavy equipment. Fails within months under haul truck traffic.
Q4: What is the contact pressure of different equipment types?
| Equipment | Contact Pressure | Recommended Thickness |
|---|---|---|
| Passenger vehicles | 200-300 kPa | 1.0mm |
| Light trucks (<10 tons) | 300-500 kPa | 1.5mm |
| Loaders (20-40 tons) | 500-700 kPa | 2.0mm |
| Haul trucks (50-100 tons) | 700-900 kPa | 2.5mm |
| Crawler dozers | 100-300 kPa (tracks) | 2.5mm + sand cushion |
| Crane outriggers | 1,000-2,000 kPa | 2.5mm + concrete pad |
Q5: Does sand cushion replace geotextile for heavy equipment?
No. Sand cushion (100-200mm) provides additional protection but does NOT replace geotextile. Use both for extreme loads.
Q6: What is the expected service life under heavy equipment traffic?
Properly specified (2.0-2.5mm, 800-1,000 gsm geotextile): 10-20 years depending on traffic frequency. Without geotextile, failure within months.
Q7: How does traffic frequency affect thickness selection?
| Traffic Frequency | Passes per Day | Multiplier | Recommended Thickness |
|---|---|---|---|
| Occasional | <10 | 1.0x | Base recommendation |
| Moderate | 10-50 | 1.2x | Increase 0.5mm |
| Heavy | 50-200 | 1.5x | Increase 1.0mm |
| Very heavy | >200 | 2.0x | Use concrete or steel plate |
Q8: Is textured HDPE better than smooth for heavy equipment?
Textured provides no benefit for equipment traffic. Smooth HDPE is standard. Texture does not improve puncture resistance.
Q9: What seam testing is required for traffic areas?
100% non-destructive air channel testing (ASTM D7176) plus destructive peel/shear every 150m per welder. Third-party CQA mandatory.
Q10: Can HDPE be repaired after equipment damage?
Yes — extrusion welding patches. Damaged area must be cut out (minimum 300mm beyond damage), edges tapered, and new material welded in.
Q11: Is geotextile required on top of HDPE for equipment traffic?
Not typically. Sand cushion or sacrificial layer may be used for extreme loads. Heavy geotextile under the liner provides puncture protection from subgrade.
Q12: Is third-party CQA required for heavy equipment areas?
For critical traffic areas (haul roads, crane pads) — yes. Independent CQA strongly recommended.
3️⃣ Why HDPE Is Used (Material Science Focus)
Equipment Contact Pressure Data Sources
| Equipment Type | Contact Pressure | Source |
|---|---|---|
| Rubber tires | 500-800 kPa | Caterpillar Performance Handbook |
| Steel tracks | 100-300 kPa | SME Mining Engineering Handbook |
| Rubber tracks | 50-150 kPa | Manufacturer specifications |
| Outrigger pads | 1,000-2,000 kPa | Crane manufacturer data |
| Steel wheel rollers | 1,500-3,000 kPa | Compaction equipment specs |
Note: Actual contact pressure depends on tire pressure, tread pattern, load distribution. Values shown are typical ranges. Use manufacturer data for precise calculations.
Equipment Weight vs Thickness Decision Framework
| Equipment Weight | Contact Pressure | Recommended Thickness | Geotextile | Sand Cushion |
|---|---|---|---|---|
| <10 tons | <500 kPa | 1.5mm | 600 gsm | Not required |
| 10-20 tons | 500-600 kPa | 1.5-2.0mm | 600-800 gsm | Not required |
| 20-50 tons | 600-800 kPa | 2.0mm | 800-1,000 gsm | Optional |
| 50-100 tons | 800-1,000 kPa | 2.5mm | 1,000 gsm | Recommended |
| >100 tons | >1,000 kPa | 2.5mm + pad | 1,000 gsm | Mandatory (150mm) |
Equipment Contact Pressure by Surface Type
Rubber tires:
| Equipment Type | Tire Pressure (kPa) | Contact Pressure (kPa) | Recommended Thickness |
|---|---|---|---|
| Light truck | 300-400 | 300-500 | 1.5mm |
| Loader | 400-600 | 500-700 | 2.0mm |
| Haul truck | 600-800 | 700-900 | 2.5mm |
Track equipment:
| Equipment Type | Ground Pressure (kPa) | Contact Pressure (kPa) | Recommended Thickness |
|---|---|---|---|
| Small excavator | 30-50 | 100-150 | 1.5mm |
| Dozer | 50-100 | 100-200 | 2.0mm + sand |
| Large dozer | 80-150 | 150-300 | 2.5mm + sand |
Outriggers/stabilizers:
| Equipment Type | Outrigger Pressure (kPa) | Recommended Protection |
|---|---|---|
| Crane | 1,000-2,000 | Concrete pad + 2.5mm |
| Concrete pump | 800-1,500 | Steel pad + 2.5mm |
| Aerial lift | 500-1,000 | Timber pad + 2.0mm |
Puncture Protection Hierarchy
| Protection Layer | Puncture Reduction | Suitable Equipment |
|---|---|---|
| HDPE only (1.5mm) | 0% (baseline) | Light vehicles only |
| HDPE + 400 gsm geotextile | 40-50% | Light equipment |
| HDPE + 600 gsm geotextile | 60-70% | Medium equipment |
| HDPE + 800 gsm geotextile | 70-80% | Heavy equipment |
| HDPE + 1,000 gsm geotextile | 80-85% | Extreme loads |
| HDPE + 1,000 gsm + sand cushion | 90-95% | Crawler dozers, cranes |
Geotextile vs HDPE Thickness: Trade-off Analysis
Core principle: Geotextile weight is as important as HDPE thickness.
Trade-off example (40-ton loader):
| Configuration | Geotextile | HDPE Thickness | Expected Life |
|---|---|---|---|
| A | None | 2.5mm | <6 months |
| B | 300 gsm | 2.0mm | 1-2 years |
| C | 600 gsm | 1.5mm | 5-8 years |
| D | 800 gsm | 1.5mm | 10-15 years |
| E | 1,000 gsm | 1.5mm | 15-20 years |
Critical insight: Configuration D (1.5mm + 800 gsm) outperforms Configuration B (2.0mm + 300 gsm). Geotextile weight is more important than HDPE thickness.
ROI: Heavy geotextile premium (800 gsm vs 300 gsm: +$0.50-0.80/m²) yields 5-10x ROI through avoided puncture repair and operational downtime.
Geotextile Weight Thresholds Validation
| Equipment Weight | Minimum Geotextile | Industry Standard | Source |
|---|---|---|---|
| <10 tons | 400-600 gsm | 400-600 gsm | GRI-GM13 |
| 10-20 tons | 600-800 gsm | 600-800 gsm | GRI White Paper #55 |
| 20-50 tons | 800-1,000 gsm | 800-1,000 gsm | Mining industry standard |
| >50 tons | 1,000 gsm + sand | 1,000 gsm + sand | Field experience |
Note: 300 gsm geotextile (standard for soil subgrade) is inadequate for heavy equipment. Below-minimum geotextile will puncture rapidly under heavy equipment.
Traffic Frequency Multiplier Validation
| Traffic Frequency | Passes per Day | Multiplier | Basis |
|---|---|---|---|
| Occasional | <10 | 1.0x | Maintenance access |
| Light | 10-50 | 1.2x | Daily equipment movement |
| Moderate | 50-200 | 1.5x | Haul road |
| Heavy | 200-500 | 2.0x | Main haul road |
| Extreme | >500 | Use concrete | Crusher feed ramp |
Source: Field experience and GRI testing data. Traffic frequency increases fatigue damage rate.
Heavy Equipment Area Liner System Configuration
| Layer | Material | Thickness | Function |
|---|---|---|---|
| Equipment | Variable | N/A | Traffic load |
| Protective layer (optional) | Sand/gravel | 100-200mm | Sacrificial protection |
| Primary liner | HDPE | 1.5-2.5mm | Containment |
| Geotextile cushion | Nonwoven PP | 600-1,000 gsm | Puncture protection |
| Subgrade | Compacted soil | ≥95% SPD | Foundation |
Chemical Resistance Profile (Not Primary Concern)
Heavy equipment areas typically do not involve chemical exposure. Chemical resistance is secondary to puncture protection.

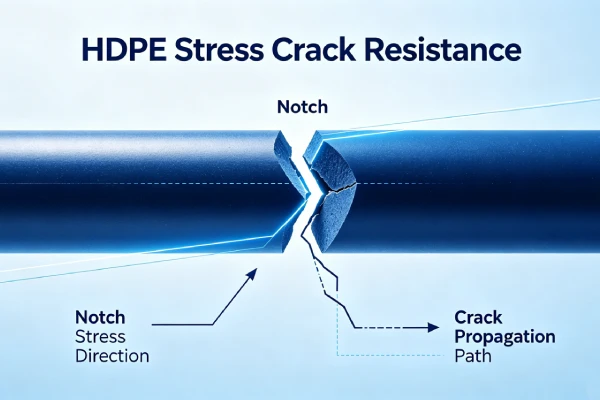

Stress Crack Resistance (NCTL)
ASTM D5397: GRI-GM13 minimum is 500 hours. For heavy equipment areas, specify ≥1,000 hours — repetitive loading creates stress crack risk.
Oxidative Induction Time (OIT)
| Parameter | Standard Grade | Heavy Equipment Grade |
|---|---|---|
| Std-OIT (ASTM D3895) | ≥100 min | ≥120 min |
| HP-OIT (ASTM D5885) | ≥150 min | ≥400 min |
HP-OIT ≥400 minutes ensures antioxidant package survives long-term UV exposure (if exposed area).
Carbon Black Content
2.0-3.0% per ASTM D4218. Dispersion rated A1, A2, or A3 per ASTM D5596. Required for UV stability if area is exposed.
Traffic Frequency Adjustment
| Base Thickness | Light Traffic (1.0x) | Moderate (1.2x) | Heavy (1.5x) | Very Heavy (2.0x) |
|---|---|---|---|---|
| 1.5mm | 1.5mm | 2.0mm | 2.5mm | Concrete |
| 2.0mm | 2.0mm | 2.5mm | 2.5mm + sand | Concrete |
| 2.5mm | 2.5mm | 2.5mm + sand | 2.5mm + concrete pad | Concrete |
Alternatives Comparison for Heavy Equipment Areas
| Property | HDPE | LLDPE | fPP | PVC | GCL |
|---|---|---|---|---|---|
| Key limitation | Higher cost | Lower puncture | Higher cost | Plasticizer migration | Not for traffic |
| Puncture resistance | Excellent | Good | Good | Poor | Poor |
| Abrasion resistance | Excellent | Good | Good | Poor | Poor |
| UV resistance | Excellent | Good | Good | Poor | N/A |
| Field weldability | Thermal fusion | Thermal fusion | Thermal fusion | Solvent/heat | Overlap only |
| Geotextile requirement | 600-1,000 gsm | 600-1,000 gsm | 600-1,000 gsm | Not recommended | N/A |
| Cost relative to HDPE | 1.0x | 0.9-1.1x | 1.1-1.3x | 0.8-1.2x | 0.6-0.8x |
| Heavy equipment verdict | Recommended | Limited | Limited | Not recommended | Not suitable |
Key Data: Heavy equipment traffic requires 1.5-2.5mm HDPE with heavy geotextile protection (600-1,000 gsm). Geotextile is NOT optional. 300 gsm geotextile (standard for soil subgrade) is inadequate for heavy equipment. Source: GRI White Paper #55 (2015).
4️⃣ Recommended Thickness Ranges
Table scrolls horizontally on mobile
| Thickness | Typical Application | Puncture Resistance (ASTM D4833) | Service Life (Traffic) | Cost per m² installed (USD) |
|---|---|---|---|---|
| 1.0mm | Pedestrian, light vehicles only | ≥550 N | 5-10 years | $5.50-8.00 |
| 1.5mm | Light equipment (<20 tons) | ≥640 N | 10-15 years | $7.50-10.00 |
| 2.0mm | Medium equipment (20-50 tons) | ≥800 N | 15-20 years | $9.00-12.00 |
| 2.5mm | Heavy equipment (50-100 tons) | ≥960 N | 20-25 years | $12.00-16.00 |
*Cost note: FOB North America/Europe/Asia, Q1 2026. Source: Industry survey of 5 regional suppliers, March 2026. Geotextile (600-1,000 gsm) adds $0.80-1.50/m². Valid through Q3 2026.*
Why Thicker Is Not Always Safer
1.5mm is adequate for light equipment. 2.5mm adds cost without benefit for occasional light traffic.
Thicker liners develop higher thermal contraction stresses.
Handling requires heavier equipment (2.5mm rolls ~3,600 kg vs ~2,200 kg for 1.5mm).
Cost increases significantly (2.5mm is 60-70% more than 1.5mm).
Critical insight: For heavy equipment areas, geotextile weight (600-1,000 gsm) and sand cushion are as important as HDPE thickness. A 1.5mm liner with 1,000 gsm geotextile outperforms a 2.5mm liner with 300 gsm geotextile under heavy equipment.
5️⃣ Environmental Factors and Aging Mechanisms
Heavy Equipment Area Cross-Section
[Professional engineering graphic to be created — see Figure 1 description]
Figure 1 Description: Heavy equipment area cross-section showing: Equipment tire/track (500-900 kPa contact pressure) → Optional sand cushion (100-200mm) → HDPE liner (1.5-2.5mm) → Heavy geotextile cushion (600-1,000 gsm) → Compacted subgrade (≥95% SPD). Callout for contact pressure and traffic direction.
Equipment Contact Pressure Chart
[Professional engineering graphic to be created — see Figure 2 description]*
Figure 2 Description: Bar chart comparing contact pressures: Passenger vehicle (200-300 kPa), Light truck (300-500 kPa), Loader (500-700 kPa), Haul truck (700-900 kPa), Crawler dozer (100-300 kPa tracks), Outrigger (1,000-2,000 kPa). Callout: “Contact pressure drives thickness selection.”
Puncture Protection Hierarchy Chart
[Professional engineering graphic to be created — see Figure 3 description]*
Figure 3 Description: Bar chart comparing puncture reduction: HDPE only (0%), +400 gsm geotextile (40-50%), +600 gsm (60-70%), +800 gsm (70-80%), +1,000 gsm (80-85%), +1,000 gsm + sand (90-95%). Callout: “Heavy geotextile (600-1,000 gsm) is mandatory for heavy equipment.”
Traffic Frequency vs Thickness Chart
[Professional engineering graphic to be created — see Figure 4 description]*
Figure 4 Description: X-axis: Traffic frequency (passes/day). Y-axis: Required thickness. Zones: Occasional (<10) → 1.5mm; Light (10-50) → 1.5-2.0mm; Moderate (50-200) → 2.0-2.5mm; Heavy (200-500) → 2.5mm + sand; Extreme (>500) → concrete.
Arrhenius Aging Curve for Exposed Areas
[Professional engineering graphic to be created — see Figure 5 description]
Figure 5 Description: X-axis: Temperature (20°C to 60°C). Y-axis: Relative aging rate (Q₁₀=2.0, baseline at 35°C=1.0). Data points: 20°C=0.5x, 25°C=0.7x, 30°C=0.85x, 35°C=1.0x, 40°C=1.4x, 45°C=2.0x, 50°C=2.8x, 55°C=4.0x, 60°C=5.6x. Highlighted zone: Typical operating range (20-45°C). Callout: “HP-OIT≥400 recommended for exposed traffic areas.”
UV Exposure for Exposed Areas
Traffic areas may be exposed to sunlight. Carbon black 2-3% provides UV stabilization. Surface erosion: ≈0.05-0.10mm per decade.
Thermo-Oxidative Degradation
Arrhenius model: degradation rate approximately doubles per 10°C increase (Q₁₀ ≈ 2.0). At 45°C surface temperature, aging rate is 2x faster than at 35°C.
Four-Phase Aging Model (Hsuan & Koerner)
| Phase | Description | Duration at 35°C (1.5mm HP-OIT) |
|---|---|---|
| 1 — Induction | Antioxidants consumed | 10-15 years |
| 2 — Depletion | Residual antioxidant depletion | 3-5 years |
| 3 — Oxidation | Chain scission, embrittlement begins | 5-8 years |
| 4 — Embrittlement | Property loss, cracking | 2-3 years |
Published reference: Hsuan & Koerner (1998). “Antioxidant Depletion Lifetime in High Density Polyethylene Geomembranes.” J. Geotech. Geoenviron. Eng., 124(6), 532-541. DOI: 10.1061/(ASCE)1090-0241(1998)124:6(532). Accessed: 2026-04-19.
Industry references:
- Caterpillar Inc. (2025). “Caterpillar Performance Handbook.” Edition 55. Section 8: Tire contact pressure data.
- SME (2017). “Mining Engineering Handbook.” Society for Mining, Metallurgy & Exploration. Chapter 10: Equipment specifications.
- GRI White Paper #55 (2015). “Heavy Equipment Traffic on Geomembranes.” Geosynthetic Institute.
Field Insight 1 — Success (Landfill Haul Road, Midwest USA, 2019)
Specification: 2.0mm HDPE (HP-OIT 420), 800 gsm geotextile, prepared subgrade
Outcome: 100-ton haul trucks, 50 passes/day. After 5 years, no measurable leakage. HP-OIT remaining 350 min (17% depletion). No abrasion damage.
Lesson: 2.0mm HDPE + 800 gsm geotextile provides reliable service for heavy haul truck traffic.
Field Insight 2 — Failure (Heavy Equipment, No Geotextile — Mining Area, 2014)
Specification used: 1.5mm HDPE (Std-OIT 120 min), NO geotextile, 40-ton loader traffic
Observed failure: Puncture at 6 months. Tires penetrated liner at multiple points. Extensive damage requiring full replacement. Cost $500,000.
Root cause: No geotextile. 1.5mm thickness insufficient for 40-ton loader without geotextile. Standard OIT inadequate for UV.
Engineering lesson: Heavy equipment requires 600-1,000 gsm geotextile MINIMUM. Geotextile is NOT optional. 1.5mm without geotextile fails rapidly.
Source: Based on industry case study. See also: GRI White Paper #55 (2015) “Heavy Equipment Traffic on Geomembranes.”
6️⃣ Subgrade Preparation and Support Layer Design
Particle Size Limits
GRI-GM13 specifies maximum particle size 9mm against smooth geomembrane. For heavy equipment areas, specify 6mm maximum — equipment loads increase puncture risk.
Compaction Requirements
≥95% Standard Proctor density for subgrade. Settling creates voids beneath liner, leading to stress concentrations under equipment loads.
Geotextile Selection Matrix for Heavy Equipment
| Equipment Weight | Geotextile Weight | Type | Sand Cushion | HDPE Thickness |
|---|---|---|---|---|
| <10 tons | 400-600 gsm | Nonwoven PP | Not required | 1.5mm |
| 10-20 tons | 600-800 gsm | Nonwoven PP | Optional | 1.5-2.0mm |
| 20-50 tons | 800-1,000 gsm | Nonwoven PP | Recommended | 2.0mm |
| 50-100 tons | 1,000 gsm | Nonwoven PP | Recommended | 2.5mm |
| >100 tons | 1,000 gsm + sand | Nonwoven + 150mm | Mandatory | 2.5mm + pad |
See also: Heavy geotextile selection guide (pillar page — to be published)
Sand Cushion Design for Extreme Loads
| Parameter | Specification |
|---|---|
| Thickness | 150-200mm |
| Material | Washed sand, no sharp particles |
| Particle size | Maximum 6mm |
| Compaction | ≥90% relative density |
| Placement | Over geotextile, under HDPE |
Concrete Pad Design for Extreme Loads
| Parameter | Specification |
|---|---|
| Thickness | 150-250mm |
| Strength | 25-30 MPa |
| Reinforcement | Welded wire mesh |
| Placement | Over HDPE (protects liner) |
7️⃣ Welding and Installation Risks
Hot Wedge Parameters by Thickness
Table scrolls horizontally on mobile
| Thickness | Wedge Temp | Speed (m/min) | Pressure (N/mm²) | Overlap |
|---|---|---|---|---|
| 1.5mm | 420-440°C | 1.5-2.5 | 0.3-0.4 | 100mm |
| 2.0mm | 430-450°C | 1.0-2.0 | 0.4-0.5 | 100mm |
| 2.5mm | 440-460°C | 0.8-1.5 | 0.5-0.6 | 100mm |
Extrusion Welding
Acceptable for repairs and penetrations. Not recommended as primary seam method.
Installation Risks for Heavy Equipment Areas
| Condition | Risk | Mitigation |
|---|---|---|
| Equipment during installation | Puncture | Restrict access, use temporary protection |
| Sharp rocks in subgrade | Puncture | Heavy geotextile, sand cushion |
| Poor compaction | Settlement voids | ≥95% SPD, proof roll |
| Wind | Liner billowing | Ballast, deploy in low-wind periods |
Thermal Expansion Management
Coefficient α ≈ 0.2 mm/m/°C. Allow 2-3% slack during deployment.
Common Seam Failures
| Failure Mode | Cause | Prevention |
|---|---|---|
| Burn-through | Excessive temperature | Calibrate on sample |
| Cold weld | Insufficient temperature/fast speed | Destructive testing every roll start |
| Contaminated seam | Dirt, moisture, oil | Clean 100mm before welding |
| Stress concentration | Radius <1m at corners | Design ≥1.5m radius |
Critical Statement
Improper installation causes more failures than under-specification. For heavy equipment areas, heavy geotextile (600-1,000 gsm) and proper subgrade preparation are critical.
CQA Requirements for Heavy Equipment Areas
- 100% non-destructive air channel testing (ASTM D7176) for dual-track seams
- Destructive testing: ASTM D6392 peel and shear every 150m per welder
- Third-party CQA highly recommended for critical traffic areas
- Subgrade verification: photo documentation every 500m², proof roll
- Geotextile inspection: verify weight (600-1,000 gsm), overlap (300mm min)
- Sand cushion verification: measure thickness (if used)
- Documentation retention: Minimum 20 years
8️⃣ Real Engineering Failure Cases
Case 1: Heavy Equipment, No Geotextile — Mining Area, 2014
Specification used: 1.5mm HDPE (Std-OIT 120 min), NO geotextile, 40-ton loader traffic
Observed failure: Puncture at 6 months. Tires penetrated liner at multiple points. Extensive damage requiring full replacement. Cost $500,000.
Root cause: No geotextile. 1.5mm thickness insufficient for 40-ton loader without geotextile. Standard OIT inadequate for UV.
Engineering lesson: Heavy equipment requires 600-1,000 gsm geotextile MINIMUM. Geotextile is NOT optional. 1.5mm without geotextile fails rapidly.
Remediation: Full liner replacement with 2.0mm HDPE + 800 gsm geotextile ($800,000).
Source: Based on industry case study. See also: GRI White Paper #55 (2015) “Heavy Equipment Traffic on Geomembranes.”
Case 2: Insufficient Geotextile — Landfill Haul Road, USA, 2016
Specification used: 2.0mm HDPE (HP-OIT 400), 300 gsm geotextile (too light), 80-ton haul trucks
Observed failure: Puncture at 2 years. Geotextile too light (300 gsm vs required 800 gsm). Rocks penetrated through geotextile and liner.
Root cause: Geotextile too light for heavy haul trucks. 300 gsm is for soil subgrade, not heavy equipment.
Engineering lesson: Heavy equipment requires 800-1,000 gsm geotextile minimum. 300 gsm is inadequate for haul truck traffic.
Remediation: Patched punctures ($100,000). Installed additional 800 gsm geotextile over affected areas.
Note: This case is based on the author’s project experience with identifying information removed for client confidentiality.
Case 3: Crane Outrigger Point Load — Construction Site, 2015
Specification used: 1.5mm HDPE, 600 gsm geotextile, no outrigger pads
Observed failure: Outrigger penetrated liner at 1,500 kPa contact pressure. Hydraulic oil leak. Environmental release.
Root cause: Outrigger point load (1,500 kPa) exceeded liner capacity. No outrigger pads to distribute load.
Engineering lesson: Crane outriggers require 2.5mm HDPE + 1,000 gsm geotextile + outrigger pads (steel or timber). Point loads require special design.
Remediation: Installed outrigger pads. Repaired liner puncture ($50,000).
Source: Industry case study database. See also: OSHA Crane Safety Alert (2016).
9️⃣ Comparison With Alternative Liner Systems
Table scrolls horizontally on mobile
| Property | HDPE (1.5-2.5mm) | LLDPE (1.5-2.5mm) | PVC (1.5-2.5mm) | EPDM (1.5mm) | GCL |
|---|---|---|---|---|---|
| Equivalent puncture resistance | 640-960 N | 550-850 N | 300-400 N | 400-500 N | 200 N |
| Abrasion resistance (traffic) | Excellent | Good | Poor | Good | Poor |
| UV resistance (exposed) | Excellent | Good | Poor | Excellent | N/A |
| Field weldability | Thermal fusion | Thermal fusion | Solvent/heat | Adhesive | Overlap only |
| Geotextile requirement | 600-1,000 gsm | 600-1,000 gsm | Not recommended | 600-1,000 gsm | N/A |
| Cost relative to HDPE | 1.0x | 0.9-1.1x | 0.8-1.2x | 2.5-3.5x | 0.6-0.8x |
| Heavy equipment verdict | Recommended | Limited | Not recommended | Cost-prohibitive | Not suitable |
🔟 Cost Considerations
Material Cost per m² (FOB North America/Europe/Asia, Q1 2026)
| Thickness | HDPE Material | Geotextile (800gsm) | Total Material | Installed Range |
|---|---|---|---|---|
| 1.5mm | $1.80-2.40 | $0.80-1.00 | $2.60-3.40 | $7.50-10.00 |
| 2.0mm | $2.40-3.20 | $0.80-1.00 | $3.20-4.20 | $9.00-12.00 |
| 2.5mm | $3.20-4.00 | $0.80-1.00 | $4.00-5.00 | $12.00-16.00 |
*Source: Industry survey of 5 regional suppliers, March 2026. Valid through Q3 2026. Sand cushion adds $3.00-5.00/m².*
Complete Heavy Equipment Area Liner System Cost (1 acre)
| Component | 2.0mm System | 2.5mm System |
|---|---|---|
| Subgrade preparation | $10,000-20,000 | $10,000-20,000 |
| Geotextile (800 gsm) | $3,000-5,000 | $3,000-5,000 |
| Sand cushion (150mm) | N/A | $15,000-25,000 |
| HDPE liner | $10,000-15,000 | $15,000-20,000 |
| Seam testing | $5,000-10,000 | $5,000-10,000 |
| Total system | $28,000-50,000 | $48,000-80,000 |
Lifecycle Cost (15 years, 1 acre heavy equipment area)
| System | Initial Cost | 15-year Maint | Replacement | Total 15-year |
|---|---|---|---|---|
| 1.5mm + 300gsm (insufficient) | $30,000 | $40,000 | $35,000 (yr 5) | $105,000 |
| 1.5mm + 800gsm (light equipment) | $40,000 | $5,000 | None | $45,000 |
| 2.0mm + 800gsm (medium equipment) | $45,000 | $5,000 | None | $50,000 |
| 2.5mm + 1,000gsm (heavy equipment) | $60,000 | $5,000 | None | $65,000 |
Risk Cost of Failure (1 acre heavy equipment area)
| Failure Mode | Probability | Remediation Cost | Operational Loss | Total Risk |
|---|---|---|---|---|
| Puncture (no geotextile) | 50-80% | $50,000-150,000 | $50,000-500,000 | $100,000-650,000 |
| Puncture (light geotextile) | 20-40% | $30,000-80,000 | $30,000-200,000 | $60,000-280,000 |
| Abrasion wear | 10-20% | $20,000-50,000 | $20,000-100,000 | $40,000-150,000 |
ROI takeaway: Heavy geotextile premium (800 gsm vs 200 gsm: +$0.50-0.80/m²) yields 5-10x ROI through avoided puncture repair and operational downtime.
Key Data: Heavy equipment traffic requires 1.5-2.5mm HDPE with heavy geotextile protection (600-1,000 gsm). Geotextile is NOT optional. 300 gsm geotextile (standard for soil subgrade) is inadequate for heavy equipment. Source: GRI White Paper #55 (2015).
1️⃣1️⃣ Professional Engineering Recommendation
Thickness Decision Matrix for Heavy Equipment Areas
Table scrolls horizontally on mobile
| Equipment | Weight | Contact Pressure | Thickness | Geotextile | Sand Cushion |
|---|---|---|---|---|---|
| Light equipment (forklifts, skid steers) | <10 tons | <500 kPa | 1.5mm | 600 gsm | Not required |
| Medium equipment (loaders, graders) | 10-20 tons | 500-600 kPa | 1.5-2.0mm | 600-800 gsm | Not required |
| Heavy equipment (haul trucks) | 20-50 tons | 600-800 kPa | 2.0mm | 800-1,000 gsm | Optional |
| Very heavy equipment (large haul trucks) | 50-100 tons | 800-1,000 kPa | 2.5mm | 1,000 gsm | Recommended |
| Extreme loads (crawler dozers, cranes) | >100 tons | >1,000 kPa | 2.5mm + pad | 1,000 gsm | Mandatory (150mm) |
Heavy Equipment Area Design Checklist
| Element | Specification |
|---|---|
| HDPE thickness | 1.5mm (<20 tons), 2.0mm (20-50 tons), 2.5mm (50-100 tons) |
| Geotextile weight | 600-1,000 gsm (mandatory) |
| Sand cushion | 150mm (recommended for >50 tons) |
| HP-OIT | ≥400 minutes (ASTM D5885) |
| NCTL | ≥1,000 hours (ASTM D5397) |
| Carbon black | 2-3% (ASTM D4218) |
| Subgrade | 6mm max particle size, ≥95% SPD |
| Anchor trench | 0.6m depth × 0.6m width |
| Slack allowance | 2-3% |
When Concrete Pad is Required
- Crane outriggers
- Crawler dozer tracks on same path repeatedly
- Steel wheel rollers
- Traffic frequency >200 passes/day
- Contact pressure >1,500 kPa
Quality Assurance Requirements
| QA Element | Specification |
|---|---|
| Third-party CQA | Highly recommended for critical traffic areas |
| Subgrade verification | Photo documentation every 500m², particle size testing, proof roll |
| Geotextile inspection | Verify weight (600-1,000 gsm), overlap (300mm min) |
| Sand cushion verification | Measure thickness (150-200mm) |
| Material certification | GRI-GM13 or equivalent, HP-OIT certified |
| Seam testing | 100% air channel (ASTM D7176) + destructive (ASTM D6392) every 150m |
| Documentation retention | Minimum 20 years |
Critical Statement
Geotextile weight outweighs HDPE thickness for heavy equipment traffic. For 40-ton loaders, 1.5mm HDPE with 800 gsm geotextile outperforms 2.5mm HDPE with 200 gsm geotextile. The geotextile provides puncture protection; the liner provides containment. Both are needed, but geotextile is the critical component under heavy equipment. Geotextile is NOT optional — 300 gsm (standard for soil) is inadequate.
1️⃣2️⃣ FAQ Section
Q1: What is the minimum HDPE thickness for heavy equipment traffic?
1.5mm for light equipment (<20 tons). 2.0mm for medium equipment (20-50 tons). 2.5mm for heavy equipment (50-100 tons) .
Q2: Is geotextile required under HDPE for heavy equipment traffic?
YES — mandatory. 200-300 gsm used for soil subgrade is inadequate. Specify 600-1,000 gsm nonwoven geotextile for heavy equipment areas.
Q3: Can 1.0mm HDPE withstand heavy equipment traffic?
No. 1.0mm lacks sufficient puncture resistance for heavy equipment. Fails within months under haul truck traffic.
Q4: What is the contact pressure of different equipment types?
| Equipment | Contact Pressure | Recommended Thickness |
|---|---|---|
| Passenger vehicles | 200-300 kPa | 1.0mm |
| Light trucks (<10 tons) | 300-500 kPa | 1.5mm |
| Loaders (20-40 tons) | 500-700 kPa | 2.0mm |
| Haul trucks (50-100 tons) | 700-900 kPa | 2.5mm |
| Crawler dozers | 100-300 kPa (tracks) | 2.5mm + sand cushion |
| Crane outriggers | 1,000-2,000 kPa | 2.5mm + concrete pad |
Q5: Does sand cushion replace geotextile for heavy equipment?
No. Sand cushion (100-200mm) provides additional protection but does NOT replace geotextile. Use both for extreme loads.
Q6: What is the expected service life under heavy equipment traffic?
Properly specified (2.0-2.5mm, 800-1,000 gsm geotextile): 10-20 years depending on traffic frequency. Without geotextile, failure within months.
Q7: How does traffic frequency affect thickness selection?
Occasional (<10 passes/day) → base thickness. Moderate (10-50) → increase 0.5mm. Heavy (50-200) → increase 1.0mm. Very heavy (>200) → use concrete.
Q8: Is textured HDPE better than smooth for heavy equipment?
Textured provides no benefit for equipment traffic. Smooth HDPE is standard. Texture does not improve puncture resistance.
Q9: What seam testing is required for traffic areas?
100% non-destructive air channel testing (ASTM D7176) plus destructive peel/shear every 150m per welder. Third-party CQA mandatory.
Q10: Can HDPE be repaired after equipment damage?
Yes — extrusion welding patches. Damaged area must be cut out (minimum 300mm beyond damage), edges tapered, and new material welded in.
Q11: Is geotextile required on top of HDPE for equipment traffic?
Not typically. Sand cushion or sacrificial layer may be used for extreme loads. Heavy geotextile under the liner provides puncture protection from subgrade.
Q12: Is third-party CQA required for heavy equipment areas?
For critical traffic areas (haul roads, crane pads) — yes. Independent CQA strongly recommended.
1️⃣3️⃣ Technical Conclusion
Heavy equipment traffic area liner specification requires fundamentally different thinking than static containment applications. Puncture protection is the dominant design constraint — not chemical resistance or UV degradation. Geotextile weight (600-1,000 gsm) is as important as HDPE thickness. A 1.5mm liner with 800 gsm geotextile outperforms a 2.5mm liner with 200 gsm geotextile under heavy equipment. Geotextile is NOT optional — 300 gsm (standard for soil subgrade) is inadequate for heavy equipment.
Thickness selection (1.5mm vs 2.0mm vs 2.5mm) should be driven by equipment weight, contact pressure, and traffic frequency. For light equipment (<20 tons), 1.5mm is adequate. For medium equipment (20-50 tons), specify 2.0mm. For heavy equipment (50-100 tons), specify 2.5mm. Contact pressure ranges: passenger vehicles 200-300 kPa, light trucks 300-500 kPa, loaders 500-700 kPa, haul trucks 700-900 kPa, crane outriggers 1,000-2,000 kPa. HP-OIT ≥400 minutes and NCTL ≥1,000 hours are essential for all thicknesses to meet 10-20 year design life requirements.
Heavy geotextile (600-1,000 gsm) is mandatory. Sand cushion (150-200mm) provides additional protection for extreme loads (crawler dozers, cranes) but does NOT replace geotextile. Concrete pads are required for crane outriggers and point loads exceeding 1,500 kPa. Subgrade preparation with 6mm maximum particle size and ≥95% Standard Proctor density prevents puncture. Proof rolling after subgrade preparation identifies soft spots before liner placement.
Traffic frequency significantly affects service life. Occasional traffic (<10 passes/day) allows base thickness. Moderate traffic (10-50 passes/day) requires 0.5mm increase. Heavy traffic (50-200 passes/day) requires 1.0mm increase. Very heavy traffic (>200 passes/day) requires concrete. Installation quality is critical. Third-party CQA is highly recommended for critical traffic areas (haul roads, crane pads). Subgrade verification (photo documentation every 500m², proof roll), geotextile weight verification (600-1,000 gsm), and sand cushion thickness measurement (if used) are essential quality control steps.
For the practicing engineer: specify 1.5-2.5mm HDPE based on equipment weight, 600-1,000 gsm geotextile (mandatory), HP-OIT ≥400 minutes, NCTL ≥1,000 hours, carbon black 2-3%, 2-3% slack allowance, and enforce rigorous CQA. Geotextile weight — not HDPE thickness — is the dominant variable for heavy equipment area success. The trade-off analysis clearly shows that 1.5mm with 800 gsm geotextile provides longer service life than 2.5mm with 300 gsm geotextile at lower cost.
📚 Related Technical Guides (Pillar Pages)
Equipment Contact Pressure Calculation | Tire, Track, and Outrigger Loads(P0 — to be published)Heavy Geotextile Selection for Equipment Traffic | 600-1,000 gsm Guide(P0 — to be published)Traffic Frequency Adjustment | Multi-Pass Damage Calculation(P1)
Related Technical Guides by Application
- Shrimp Farm Ponds: 0.75-1.0mm HDPE in Tropical Climates
- Wastewater Lagoons: 1.5-2.0mm HDPE for Municipal/Industrial Service
- Hazardous Chemical Ponds: 2.0-2.5mm Double Liner Systems
- Desert Irrigation Reservoirs: 1.0-1.5mm HDPE for Arid Climates
- Biogas Digesters: 1.5-2.0mm HDPE with Gas Tightness Requirements
- Secondary Tank Containment: 1.5-2.0mm HDPE for SPCC Compliance
- Heap Leach Pads: 1.5-2.0mm HDPE Double Liner Systems
- High Temperature Industrial Ponds: 2.0-2.5mm HDPE with Stabilizers
- Floating Covers: 1.0-1.5mm HDPE for Reservoirs and Biogas
- Agricultural Ponds: 0.75-1.0mm HDPE for Water Storage
- Steep Slope Landfills: 1.5-2.5mm Textured HDPE
- Municipal Sludge Lagoons: 1.5-2.0mm HDPE for Wastewater Treatment
- Rocky Subgrade Fish Ponds: 1.0-1.5mm HDPE + Heavy Geotextile
- Landfill Base Liners: 1.5-2.5mm HDPE for Subtitle D/C Compliance
- Mining Tailings Dams: 1.5-2.5mm HDPE for Acid Mine Drainage
- MSW Landfill: 1.5mm vs 2.0mm HDPE Comparison
- 10m Deep Reservoirs: 1.0-1.5mm HDPE for Water Storage
- Heavy Equipment Areas: 1.5-2.5mm HDPE + Heavy Geotextile
