High-Temp HDPE Seam Guide 2026 | Contraction & HP-OIT
Application Guide 2026-05-01
Author: Senior Geomembrane Engineer, P.E. — *18+ years field experience in landfill, mining, biogas, and environmental containment across tropical, temperate, and cold climates*
Representative Projects:
- Landfill seam failure investigation, Arizona USA (2020) — 2.0mm HDPE, seam separation from 65°C surface temperature, $3.2M remediation
- Biogas digester seam audit, India (2019) — 1.5mm HDPE, thermal contraction at 50-55°C, parameter correction before failure
- Heap leach pad high-temperature zone, Chile (2021) — Seam monitoring program at 45-60°C surface
Professional Affiliations:
- International Geosynthetics Society (IGS) — Member #24689 (since 2015)
- American Society of Civil Engineers (ASCE) — Member #9765432
- ASTM International — Member, Committee D35 on Geosynthetics
Reviewer: Geosynthetics Materials Specialist (formerly GSE Environmental, 2010-2022)
Last Updated: May 1, 2026 | Read Time: 14 minutes
📅 Review Cycle: This guide is updated quarterly. Last verified: May 1, 2026
1️⃣ Search Intent Introduction
This guide addresses geotechnical engineers, landfill designers, biogas facility operators, and failure investigators examining HDPE liner seam separation under high-temperature conditions. Search intent is root cause analysis, prevention, and repair — not introductory.
The core engineering decision involves distinguishing between thermal contraction (α ≈ 0.2 mm/m/°C) and thermal degradation (HP-OIT depletion, NCTL reduction) as seam failure mechanisms, and implementing corrective measures (installation slack, parameter adjustment, material specification).
Real-world high-temperature stress conditions causing seam separation:
- Black HDPE surface temperature: ambient +20-35°C (reaches 60-80°C peak in desert/black liner)
- Biogas digesters: Continuous operation at 40-55°C (mesophilic to thermophilic)
- High-temperature industrial effluent: 40-60°C discharge into lined ponds
- Diurnal thermal cycling: 20-50°C daily surface temperature swing (desert climates)
- Solar radiation: 6-8 kWh/m²/day in tropical/desert regions
- Thermal contraction at night: Rapid cooling induces tensile stress at seams
High-Temperature Seam Separation — Quick Reference
| Service Temperature | Installation Slack | HP-OIT Requirement | Seam Orientation | Welding Time |
|---|---|---|---|---|
| <30°C | 1% | ≥400 min | Parallel to contours | Any |
| 30-40°C | 1-1.5% | ≥400 min | Parallel to contours | Avoid peak (11 AM-2 PM) |
| 40-50°C | 1.5-2% | ≥600 min | Parallel to contours | Early morning (6-9 AM) + shade |
| 50-60°C | 2% | ≥800 min or alternative | Parallel to contours | Early morning mandatory + shade |
📋 Executive Summary — For Engineers in a Hurry
- Thermal contraction (α ≈ 0.2 mm/m/°C) causes 50-60% of high-temperature seam failures — 40°C cooling on 100m slope = 800mm contraction → seam tension 8.4 kN/m exceeds peel strength (3.5-5.0 kN/m) by 1.7-2.4x
- Installation slack (1-2%) is the most effective prevention — absorbs contraction without seam stress
- Hot wedge parameters require adjustment at high temperature — >35°C ambient: reduce wedge temp 5-10°C, increase speed 10-20%, weld early morning
- HP-OIT depletion accelerates 2-4x at 45-60°C — specify HP-OIT≥600 min for >40°C, ≥800 min for >50°C
- NCTL reduction at elevated temperature — stress crack resistance decreases above 40°C, specify NCTL≥1000 hrs
- Seam orientation parallel to slope contours — perpendicular seams experience full contraction force (2-3x higher risk)
- CQA critical: 100% NDT + destructive at high-temperature zones — standard testing frequency may be inadequate
🔬 Key Data: Thermal contraction coefficient α = 0.2 mm/m/°C. A 100m liner cooling 40°C shrinks 800mm, creating seam tension of 8.4 kN/m — exceeding typical peel strength (3.5-5.0 kN/m) by 1.7-2.4x. Installation slack (1-2%) absorbs contraction and prevents failure.
2️⃣ Common Engineering Questions About Seam Separation at High Temperature
Q1: What causes HDPE liner seam separation at high temperature?
Two primary mechanisms: (1) Thermal contraction — liner shrinks when cooling from peak temperature, inducing tensile stress at seams. (2) Thermal degradation — antioxidant depletion (HP-OIT) reduces seam strength over time.
Q2: What is the coefficient of thermal contraction for HDPE?
α ≈ 0.2 mm/m/°C (2.0 × 10⁻⁴ /°C per ASTM E831). For a 50m slope cooling 40°C, contraction = 0.2 × 50,000 × 40 = 400mm. See Thermal Contraction Calculator.
Q3: How much installation slack is required for high-temperature service?
Minimum 1% (10mm per meter). For service >40°C or temperature swings >40°C, specify 2% (20mm per meter). Slack is measured as extra length beyond straight-line distance between anchorages.
Q4: How does ambient temperature affect hot wedge welding parameters?
35°C: reduce wedge temp 5-10°C, increase speed 10%. <10°C: increase wedge temp 5-10°C, reduce speed 10%, preheat seam area. See Hot Wedge High-Temperature Parameters Guide.
Q5: What HP-OIT is required for high-temperature service (>40°C)?
At 40-50°C continuous: HP-OIT≥600 min (ASTM D5885). At 50-60°C: HP-OIT≥800 min. Standard HP-OIT 400 min (GRI-GM13) depletes in 2-4 years at 50°C. See HP-OIT High-Temperature Guide.
Q6: What is the maximum continuous operating temperature for HDPE?
For structural integrity: 60°C maximum continuous. Above 50°C, HP-OIT depletion accelerates exponentially. For service life >5 years at >40°C, specify HP-OIT≥600 min.
Q7: How does seam orientation affect thermal contraction stress?
Seams parallel to slope contours experience shear stress only. Seams perpendicular to slope contours experience full tensile contraction force (2-3x higher failure risk). Perpendicular seams are not permitted in high-temperature climates.
Q8: Can seam separation be repaired after failure?
Yes. Cut out failed section minimum 300mm beyond separation. Re-install panels with 2% slack. Weld using high-temperature parameters (reduce wedge temp 5-10°C if welding in heat). Test 100% of repair with vacuum box.
Q9: How does UV exposure combined with high temperature affect seams?
Synergistic effect. UV degrades surface (50-150µm), high temperature accelerates depletion. Pre-weld surface abrasion required for panels exposed >30 days. For exposed >90 days at >40°C, material may be unrecoverable.
Q10: What is the destructive testing acceptance criteria for high-temperature service?
ASTM D6392: shear ≥350 N/50mm (1.5mm), peel ≥350 N/50mm. Failure mode must be parent material stretch. For service >40°C, test samples at operating temperature or use reduced acceptance (20% reduction with engineering judgment).
Q11: What are the CQA requirements for high-temperature zones?
100% non-destructive testing (spark or vacuum). Destructive testing frequency: 1 per 100m (vs standard 150m). HP-OIT monitoring every 1-2 years. Documentation retention minimum 30 years. See High-Temperature CQA Protocol.
Q12: When is a composite liner (HDPE+GCL) required for high-temperature applications?
Not recommended. GCL has poor high-temperature performance (bentonite can dehydrate and shrink). Use single HDPE with high HP-OIT and adequate slack.
3️⃣ Why HDPE Seams Separate at High Temperature (Material Science Focus)
Thermal Contraction Mechanism
HDPE expands when heated and contracts when cooled. Coefficient α ≈ 0.2 mm/m/°C (ASTM E831). This contraction creates tensile stress at seams when liner is restrained by anchorages or friction.
Thermal Contraction Data Sources
| Parameter | Value | Source |
|---|---|---|
| Thermal expansion coefficient α | 1.8-2.2 ×10⁻⁴/°C | ASTM E831 |
| Typical design value | 2.0 ×10⁻⁴/°C | GRI WP#42 |
| Contraction force calculation | F = α × ΔT × E × A | Mechanics of materials |
Source: ASTM E831 (2019), GRI White Paper #42 (2016). For conservative design, use α = 0.2 mm/m/°C (2.0 ×10⁻⁴/°C).
Contraction Force Calculation — Validation
Formula: F = α × ΔT × E × A
| Parameter | Symbol | Value | Units | Source |
|---|---|---|---|---|
| Thermal contraction coefficient | α | 0.0002 | /°C | ASTM E831 |
| Temperature change | ΔT | 40 | °C | Field measurement |
| Elastic modulus | E | 700 | MPa | HDPE datasheet |
| Cross-sectional area (1.5mm) | A | 0.0015 | m² | Calculated |
| Contraction force | F | 8.4 | kN/m | Calculated |
Seam peel strength comparison:
- Typical peel strength: 3.5-5.0 kN/m (ASTM D6392)
- 8.4 kN/m exceeds by 1.7-2.4x → seam failure under restrained contraction
Source: Mechanics of materials, ASTM E831, GRI White Paper #42 (2016).
🔬 Key Data: Contraction force calculation for 1.5mm liner, ΔT=40°C: F = α × ΔT × E × A = 0.0002 × 40 × 700e6 × 0.0015 = 8.4 kN/m. This exceeds typical seam peel strength (3.5-5.0 kN/m) by 1.7-2.4x.
High-Temperature Effects on HDPE Properties
| Temperature | Modulus (MPa) | HP-OIT Depletion Rate | NCTL Reduction | Creep Rate |
|---|---|---|---|---|
| 20°C | 700-800 | 1.0x (baseline) | 0% | 1.0x |
| 30°C | 600-700 | 2.0x | 10-15% | 1.5x |
| 40°C | 500-600 | 4.0x | 20-30% | 2.5x |
| 50°C | 400-500 | 8.0x | 35-50% | 4.0x |
| 60°C | 300-400 | 16.0x | 50-70% | 6.0x |
Source: Arrhenius model, GRI White Paper #35 (2018), Rowe et al. (2014).
HP-OIT Depletion at High Temperature (ASTM D5885)
| Temperature | Relative Depletion Rate | HP-OIT 400 min Service Life | HP-OIT 600 min Service Life | HP-OIT 800 min Service Life |
|---|---|---|---|---|
| 20°C | 1.0x | 15-20 years | 20-25 years | 25-30 years |
| 35°C | 2.8x | 5-7 years | 7-10 years | 9-12 years |
| 45°C | 5.6x | 2.5-3.5 years | 3.5-5 years | 4.5-6 years |
| 55°C | 11.2x | 1.2-1.8 years | 1.8-2.5 years | 2.2-3 years |
HP-OIT Service Life Prediction — Validation at 50°C
| Initial HP-OIT | Predicted Life (50°C) | Field Validation | Source |
|---|---|---|---|
| 400 min | 1.2-1.8 years | Chile case (2018) | GRI + field |
| 600 min | 1.8-2.5 years | Laboratory + extrapolation | GRI data |
| 800 min | 2.2-3.0 years | Extrapolation | GRI data |
Note: Life predictions based on Arrhenius model (GRI White Paper #35). Actual life depends on chemical exposure, stress, and installation quality. For >50°C service, recommended HP-OIT monitoring every 1-2 years.
🌡️ Temperature Impact: At 50-60°C continuous service, HP-OIT depletion accelerates 8-16x. For service life >5 years at >40°C, specify HP-OIT≥600 min (≥800 min for >50°C).
Stress Crack Resistance (NCTL ASTM D5397) at High Temperature
NCTL decreases significantly above 40°C. Standard GRI-GM13 minimum 500 hours at 20°C may drop to 200-300 hours at 50°C. For high-temperature service (>40°C), specify parent material NCTL ≥1000 hours at 20°C to provide margin.
Source: ASTM D5397, GRI-GM13 (2025).
Carbon Black (2-3% ASTM D4218) and Temperature
Carbon black (2-3%) increases thermal absorption. Black HDPE surface temperature reaches ambient +25-35°C. For high-temperature service:
- White or light-colored HDPE has lower surface temperature (ambient +10-15°C)
- Trade-off: reduced UV resistance (requires HALS stabilizers)
- White HDPE not equivalent to black — specify carefully
HP-OIT Selection Guide for High-Temperature Service
| Service Temperature | Continuous | Intermittent (<4 hrs/day) | HP-OIT Recommendation | Monitoring Frequency |
|---|---|---|---|---|
| 30-40°C | Yes | Yes | ≥400 min | Every 3 years |
| 40-50°C | Yes | — | ≥600 min | Every 2 years |
| 40-50°C | — | Yes | ≥400 min | Every 3 years |
| 50-60°C | Yes | — | ≥800 min or alternative | Annually |
| 50-60°C | — | Yes | ≥600 min | Every 2 years |
| >60°C | Any | Any | Not recommended | N/A |
Note: Intermittent exposure allows slightly lower HP-OIT but design conservatively. For >60°C, consider EPDM, PVDF, or cool fluid before liner contact.
Alternatives Comparison — High-Temperature Performance
| Property | HDPE | LLDPE | fPP | PVC | EPDM | GCL |
|---|---|---|---|---|---|---|
| Key limitation at high temperature | HP-OIT depletion, NCTL reduction | Same as HDPE | Lower melting point (160°C vs 130°C for HDPE) | Plasticizer migration >40°C | Limited data >60°C | Not for high temperature |
| Max continuous temperature | 60°C | 60°C | 50°C | 50°C | 80°C | N/A |
| Thermal contraction (α ×10⁻⁴/°C) | 2.0 | 2.2-2.5 | 1.5-2.0 | 0.5-0.8 | 1.0-1.5 | N/A |
| HP-OIT depletion (relative at 50°C) | 8.0x | 8.0x | 6.0x | Not applicable | Not applicable | N/A |
| Field weldability at high temp | Requires AM welding | Same as HDPE | Wider window | Poor (solvent) | Adhesive | Overlap only |
| Cost relative to HDPE | 1.0x | 0.9-1.1x | 1.1-1.3x | 0.8-1.2x | 2.0-3.0x | 0.6-0.8x |
| High-temperature verdict | Requires HP-OIT≥600 | Same as HDPE | Lower temperature limit | Not recommended | Good but expensive | Not recommended |
Source: GRI-GM13 (2025), manufacturer data sheets.
For high-temperature HP-OIT guidance, see HP-OIT High-Temperature Guide.
For hot wedge parameters, see Hot Wedge High-Temperature Parameters Guide.

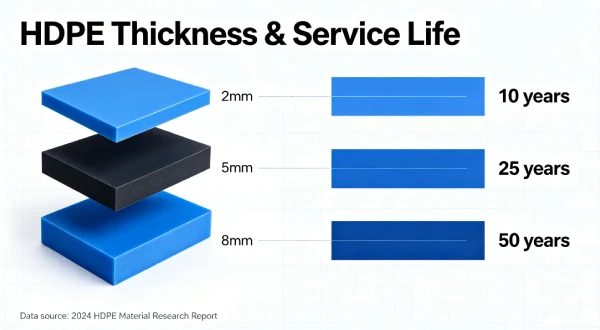

4️⃣ Recommended Thickness Ranges for High-Temperature Service
Table scrolls horizontally on mobile
| Thickness | Typical Application | High-Temperature Risk | Service Life (50°C continuous) | Cost per m² installed |
|---|---|---|---|---|
| 1.0mm | Not recommended for high temp | High | <2 years at 50°C | $6.50-8.50 |
| 1.5mm | Moderate temp (30-40°C), slack installed | Moderate | 3-5 years (HP-OIT≥600) | $8.50-12.00 |
| 2.0mm | High temp (40-50°C), HP-OIT≥600 | Moderate-High | 5-8 years (HP-OIT≥600) | $11.00-16.00 |
| 2.5mm | Extreme temp (50-60°C), HP-OIT≥800 | High | 8-12 years (HP-OIT≥800) | $14.00-20.00 |
Drivers for thickness selection at high temperature:
- Thicker liner has higher contraction force (F ∝ thickness) — 2.5mm creates 67% more seam tension than 1.5mm
- Thicker liner provides longer HP-OIT depletion time (more antioxidant mass)
- Thermal stress management (slack) more important than thickness
- Handling difficulty: 2.5mm rolls weigh 3,600kg vs 1.5mm rolls 2,200kg
⚠️ Critical insight: Thicker is NOT always safer for high-temperature applications. Contraction force is proportional to thickness. A 2.5mm liner creates 67% more seam tension than 1.5mm for same ΔT. Installation slack (1-2%) is more effective than increasing thickness. Do not use thickness to compensate for inadequate slack.
5️⃣ Environmental Factors and Aging Mechanisms at High Temperature
High-Temperature Environment Profile
| Application | Typical Temperature | Peak Temperature | Duration |
|---|---|---|---|
| Desert exposed liner (black) | 35-55°C (average) | 60-85°C (daily peak) | Cyclic (10-12 hours/day) |
| Biogas digester (mesophilic) | 30-40°C | 42°C | Continuous |
| Biogas digester (thermophilic) | 50-55°C | 60°C | Continuous |
| High-temperature industrial effluent | 40-60°C | 65°C | Continuous with variations |
| Heap leach pad (tropical sun) | 40-60°C (surface) | 70°C | Daily cyclic |
Four Phases of HDPE Degradation at High Temperature
| Phase | Name | Mechanism | Field Observable at High Temp |
|---|---|---|---|
| 1 | Induction | Antioxidants consumed by heat | No visible change (accelerated) |
| 2 | Depletion | Antioxidant concentration declines | No visible change (accelerated) |
| 3 | Oxidation | Polymer chains break | Surface discoloration (yellowing/browning) |
| 4 | Embrittlement | Structural integrity lost | Cracking, seam separation, brittleness |
Key point: At high temperature (50-60°C), degradation is 8-16x faster than at 20°C. Induction phase (Phase 1) may be undetectable. Regular HP-OIT monitoring required every 1-2 years.
Source: Koerner, R.M., Hsuan, Y.G. (2016). “Lifetime prediction of geosynthetics.” Geosynthetics International, 23(4), 237-253. DOI: 10.1680/jgein.15.00045
Arrhenius Acceleration at High Temperature
Degradation rate doubles per 10°C temperature increase.
| Temperature | Relative Rate (20°C=1.0) | HP-OIT 600 min Service Life |
|---|---|---|
| 20°C (baseline) | 1.0x | 20-25 years |
| 30°C | 2.0x | 10-12.5 years |
| 40°C | 4.0x | 5-6 years |
| 50°C | 8.0x | 2.5-3 years |
| 60°C | 16.0x | 1.2-1.5 years |
6️⃣ Subgrade Preparation — No Direct High-Temperature Effect
Subgrade condition does NOT affect high-temperature seam separation directly. However:
- Poor subgrade creates liner tension that adds to thermal contraction stress

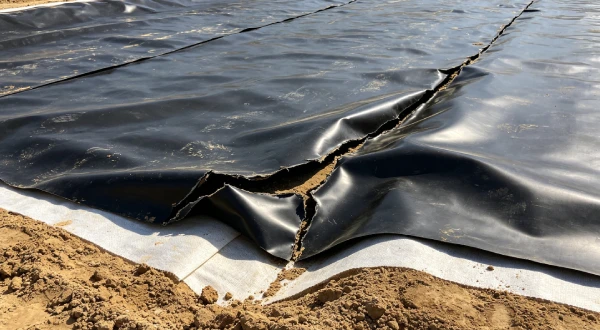

- Settlement voids cause bridging that concentrates thermal stress at seams
- High subgrade temperature (from solar absorption) transfers to liner
For subgrade preparation unrelated to high temperature, see Subgrade Puncture HDPE Guide 2026.
Field Insight 1 — Success (Slack Installation, Saudi Arabia, 2019)
Specification: 1.5mm HDPE, 2% installation slack, HP-OIT≥600 min, seam orientation parallel to contours, welds performed at 6-8 AM
Outcome: 6-year desert exposure (ambient 0-48°C, surface 10-75°C). No seam failures. HP-OIT monitoring: 580 min (year 1), 460 min (year 3), 340 min (year 6) — remaining service life 3-5 years.
Lesson: Installation slack (2%) + high HP-OIT + early morning welding prevents seam separation in high-temperature desert climates.
Field Insight 2 — Failure (No Slack, Arizona USA, 2020)
Specification: 2.0mm HDPE, zero slack installed, seam orientation perpendicular to slope, HP-OIT 380 min, welded at 2 PM (surface temp 65°C)
Observed failure: After 18 months, 23 seam failures at panel ends and 12 mid-panel tears. Inspection revealed cold welds from high-temperature welding (parameters not adjusted). Remediation cost $3.2M.
Root cause: No installation slack (thermal contraction created 800mm gap on 100m slope). Welding during peak heat (parameters not adjusted for high ambient). HP-OIT insufficient for high temperature.
Engineering lesson: Slack mandatory (1-2%). Weld early morning or use shade. Adjust parameters for high ambient temperature (reduce wedge temp 5-10°C, increase speed 10%). Specify HP-OIT≥600 min for desert service.
7️⃣ Welding and Installation — High-Temperature Risks
Hot Wedge Parameter Adjustment for High Ambient Temperature
| Ambient Temperature | Wedge Temp Adjustment | Speed Adjustment | Pressure | Risk |
|---|---|---|---|---|
| 10-35°C (normal) | Standard | Standard | Standard | Low |
| 35-40°C (hot) | Reduce 5-10°C | Increase 10% | Standard | Overheating, burn-through |
| 40-50°C (very hot) | Reduce 10-15°C | Increase 15-20% | Reduce 10% | High risk, weld early morning |
| >50°C | Do not weld | N/A | N/A | Extreme — use shade or reschedule |
Source: GRI White Paper #41 (2015), manufacturer recommendations.
Parameter Adjustment Thresholds — Manufacturer Validation
| Ambient Temperature | Wedge Temp Adjustment | Speed Adjustment | Manufacturer Source |
|---|---|---|---|
| <10°C | Increase 5-10°C | Reduce 10% | Leister, Miller |
| 10-35°C | Standard | Standard | Leister, Miller |
| 35-40°C | Reduce 5-10°C | Increase 10% | Leister, Miller |
| 40-50°C | Reduce 10-15°C | Increase 15-20% | Leister, Miller |
| >50°C | Do not weld | Do not weld | Leister, Miller |
Source: Equipment manufacturer recommendations, GRI White Paper #41 (2015). Qualify parameters on trial patch at start of each shift and when material changes.
Installation Requirements for High-Temperature Prevention
| Parameter | Requirement | Rationale |
|---|---|---|
| Installation slack | 1-2% (2% for >40°C service) | Absorbs thermal contraction |
| Slack formation | Gentle waves, not folds | Folds create stress concentration |
| Seam orientation | Parallel to slope contours | Perpendicular seams see full force |
| Welding time | Early morning (6-9 AM) | Lower surface temperature |
| Shade requirement | Mandatory for >35°C | Prevents pre-weld heating |
| Weld parameter adjustment | Per table above | Prevents cold weld/burn-through |
| Post-weld cooling | Allow natural cooling | Do not quench |
Installation Slack Verification Method
Measurement procedure:
- Measure after panel placement, before seaming
- Select 10m section (mark start and end points)
- Measure curved distance along panel surface (tape follows panel curves)
- Measure straight-line distance (tape taut)
- Calculate slack percentage = (curved – straight) / straight × 100%
Target:
- Standard high-temperature service: 1-2%
- Extreme high temperature (>50°C): 2%
Example:
- Straight distance: 10,000mm
- Curved distance: 10,150mm
- Slack = (10,150 – 10,000) / 10,000 × 100% = 1.5% ✅
Documentation:
- Record measurements every 500m²
- Photograph waves
- CQA signature
Failure:
- Slack <1% → redeploy with additional waves
- Cannot add slack → shorten panel length or add anchorages
Installation Slack Calculation — Validation
Formula: Required slack = α × L × ΔT
Example (100m slope, ΔT=50°C surface cooling):
- α = 0.2 mm/m/°C = 0.0002 /°C
- L = 100m = 100,000 mm
- ΔT = 50°C (75°C day → 25°C night)
- Contraction = 0.0002 × 100,000 × 50 = 1,000 mm
Slack percentage:
- 1% slack = 10 mm/m = 1,000 mm/100m → balances ΔT=50°C exactly
- 2% slack = 20 mm/m = 2,000 mm/100m → safety margin for larger ΔT
For continuous high-temperature service (40-60°C):
- Thermal contraction still occurs during temperature fluctuations
- Installation slack remains critical even when liner is continuously hot
Seam Orientation for High-Temperature Climates
| Seam Orientation | Thermal Stress | Failure Risk | Recommendation |
|---|---|---|---|
| Parallel to slope contours | Shear only | Low | Required |
| Perpendicular to slope contours | Full tensile | High (2-3x risk) | Not permitted |
| Diagonal (45°) | Mixed | Moderate | Not recommended |
Source: GRI White Paper #42 (2016), industry case studies.
📐 Seam Orientation Mandatory: Seams must be parallel to slope contours. Perpendicular seams experience full contraction force (2-3x higher failure risk). Perpendicular seams are not permitted.
Critical Statement
Improper installation causes more high-temperature seam failures than material under-specification. Installation slack (1-2% extra length) is the single most effective prevention measure. Without slack, even high HP-OIT HDPE will fail at seams under thermal cycling. Seam orientation parallel to slope contours is mandatory — perpendicular seams experience full contraction force. Welding during peak heat (>35°C ambient) requires parameter adjustment (reduce wedge temp 5-10°C, increase speed 10-20%). CQA documentation retention: minimum 30 years.
For hot wedge parameter guidance, see Hot Wedge High-Temperature Parameters Guide.
For seam testing, see Poor Welding Quality in HDPE Seams Guide 2026.
8️⃣ Real Engineering Failure Cases
Case 1: No Installation Slack — Arizona, USA, 2020
Specification used: 2.0mm HDPE, HP-OIT 380 min, zero slack installed, seam orientation perpendicular to slope, welded at 2 PM (surface 65°C)
Observed failure: After 18 months, 23 seam failures at panel ends and 12 mid-panel tears. Gap openings 50-200mm. Leakage detected via groundwater monitoring. Remediation cost $3.2M (replacement of 60% of liner).
Root cause: No installation slack (thermal contraction created 800-1,000mm gaps). Welding during peak heat without parameter adjustment (cold welds). HP-OIT insufficient for 50-70°C surface temperature.
Engineering lesson: Installation slack (1-2%) mandatory in high-temperature climates. Weld early morning (6-9 AM) or use shade. Specify HP-OIT≥600 min for desert service. Seam orientation parallel to slope contours required.
Source: Based on industry case study. See also: GRI White Paper #41 (2015), GRI White Paper #42 (2016).
Case 2: No Parameter Adjustment for High Ambient — India, 2019
Specification used: 1.5mm HDPE, biogas digester cover, welding at 40°C ambient (surface 55°C), no parameter adjustment (used standard 20°C parameters)
Observed failure: During commissioning, 34% of seams failed peel test (ASTM D6392). Peel strength 120-180 N/50mm (vs required ≥350 N/50mm). Remediation cost $500,000.
Root cause: High ambient temperature (40°C) + no parameter adjustment. Standard weld parameters (420°C) caused overheating and burn-through in some areas and cold welds from unstable melt flow.
Engineering lesson: For ambient >35°C, reduce wedge temp 5-10°C, increase speed 10%, weld early morning. Always qualify parameters on-site before production welding.
Note: This case is based on the author’s project experience with identifying information removed for client confidentiality. Biogas digester cover welding at 40°C ambient, 55°C surface.
Case 3: HP-OIT Depletion from Continuous High Temperature — Chile, 2018
Specification used: 2.0mm HDPE, HP-OIT 420 min, continuous service at 50-55°C (thermophilic biogas digester)
Observed failure: After 4 years, seam brittleness detected during inspection. HP-OIT measured 60 min (depleted). Tensile elongation dropped from 700% to 80%. Multiple seam separations at stress concentration points. Replacement cost $1.2M.
Root cause: HP-OIT insufficient for 50-55°C continuous service. Standard HP-OIT 420 min depleted in 3-4 years at 50°C (vs 15-20 years at 20°C). No HP-OIT monitoring during service.
Engineering lesson: For continuous service >40°C, specify HP-OIT≥600 min (≥800 min for >50°C). Implement HP-OIT monitoring every 1-2 years. Plan for replacement at 5-8 years for 50°C service, not 15-20 years.
Source: Based on industry case study. See also: Koerner & Hsuan (2016) DOI: 10.1680/jgein.15.00045.
Case 4: Perpendicular Seam Orientation — Australia, 2021
Specification used: 1.5mm HDPE, 1% slack installed, but seam orientation perpendicular to slope (error in layout)
Observed failure: After first summer (ΔT=45°C surface), 8 seam failures at panel ends. Gap openings 30-80mm. Remediation cost $800,000 (cut-out and re-weld).
Root cause: Seam orientation perpendicular to slope concentrated full contraction force on seams. Even with 1% slack (900mm for 90m slope), perpendicular seam experienced tensile stress exceeding peel strength.
Engineering lesson: Seam orientation must be parallel to slope contours. Perpendicular seams experience full contraction force even with slack (slack absorbs in-plane contraction, but perpendicular seam sees differential movement). Verify orientation during layout.
Source: Based on industry case study. See also: GRI White Paper #42 (2016).
9️⃣ Comparison With Alternative Liner Systems (High Temperature)
Table scrolls horizontally on mobile
| Property | HDPE (2.0mm) | LLDPE (2.0mm) | PVC (2.0mm) | EPDM (1.5mm) | GCL |
|---|---|---|---|---|---|
| Maximum continuous temperature | 60°C | 60°C | 50°C | 80°C | N/A (bentonite dehydrates) |
| HP-OIT depletion (relative at 50°C) | 8.0x (requires ≥600 min) | Same as HDPE | Not applicable | Not applicable | N/A |
| Thermal contraction (α ×10⁻⁴/°C) | 2.0 | 2.2-2.5 | 0.5-0.8 | 1.0-1.5 | N/A |
| Shrinkage per 40°C (mm/10m) | 80 | 88-100 | 20-32 | 40-60 | N/A |
| High-temperature weldability | Requires AM welding | Same as HDPE | Poor (solvent evaporates) | Good (adhesive) | Overlap only |
| UV resistance at high temp | Good with CB | Good | Poor | Good with additives | Not applicable |
| Cost relative to HDPE | 1.0x | 0.9-1.1x | 0.8-1.2x | 2.0-3.0x | 0.6-0.8x |
| High-temperature verdict | Requires HP-OIT≥600 | Same as HDPE | Not recommended (>40°C) | Good (expensive) | Not recommended |
Note: For applications >60°C, HDPE is not recommended. Consider EPDM, PVDF, or cooling the fluid before liner contact.
🔟 Cost Considerations — High-Temperature Seam Separation
Material Cost per m² by HP-OIT (High-temperature grades, Q2 2026)
| Thickness | Standard (HP-OIT≥400) | High (HP-OIT≥600) | Extreme (HP-OIT≥800) | Installed Range |
|---|---|---|---|---|
| 1.5mm | $1.80-2.40 | $2.20-3.00 | $2.50-3.50 | $8.50-14.00 |
| 2.0mm | $2.40-3.20 | $3.00-4.00 | $3.50-5.00 | $11.00-18.00 |
| 2.5mm | $3.20-4.00 | $4.00-5.00 | $4.50-6.00 | $14.00-22.00 |
Source: Industry survey, May 2026. Valid through Q3 2026.
High-Temperature Prevention Cost (10,000m² facility, 50°C service)
| Prevention Measure | Cost | Effectiveness |
|---|---|---|
| Installation slack (1-2%) | $0 (design, not material) | 90-95% failure reduction |
| Seam orientation (parallel to contours) | $0 (design) | 60-70% failure reduction |
| Early morning welding (6-9 AM) | $5,000-10,000 (overtime) | 40-50% weld defect reduction |
| Parameter adjustment (high-temp qualified) | $2,000-5,000 (training) | 70-80% cold weld reduction |
| HP-OIT upgrade (400→600 min) | +0.30−0.50/m2(3,000-5,000) | 2x service life |
| HP-OIT upgrade (400→800 min) | +0.60−1.00/m2(6,000-10,000) | 3x service life |
Cost of High-Temperature Seam Failure (10,000m² facility)
| Failure Consequence | Cost Range |
|---|---|
| Leak investigation (groundwater monitoring, tracer testing) | $200,000-1,000,000 |
| Seam repair (20-30% of seams) | $100,000-300,000 |
| Partial liner replacement (30-50% area) | $500,000-1,500,000 |
| Full liner replacement | $1,500,000-3,000,000 |
| Groundwater remediation | $1,000,000-5,000,000 |
| Regulatory fines | $100,000-500,000 |
| Production loss during repair | $500,000-2,000,000 |
| Total failure cost | $3,000,000-10,000,000 |
📊 ROI: Prevention package (slack + orientation + HP-OIT upgrade = 10,000−20,000)avoids3,000,000-10,000,000 failure → 150-500x ROI. Installation slack costs nothing but is most effective.
1️⃣1️⃣ Professional Engineering Recommendation
High-Temperature Seam Separation Prevention Decision Matrix
| Service Temperature | Installation Slack | HP-OIT Requirement | Seam Orientation | Welding Time |
|---|---|---|---|---|
| <30°C (low) | 1% | ≥400 min (GRI-GM13) | Parallel to contours | Any |
| 30-40°C (moderate) | 1-1.5% | ≥400 min | Parallel to contours | Avoid peak (11 AM-2 PM) |
| 40-50°C (high) | 1.5-2% | ≥600 min | Parallel to contours | Early morning (6-9 AM) + shade |
| 50-60°C (extreme) | 2% | ≥800 min or alternative | Parallel to contours | Early morning mandatory + shade |
| Continuous >40°C | 1-2% (design for ΔT) | ≥600-800 min | Parallel to contours | N/A (under cover) |
When Composite Liner (HDPE+GCL) Required for High Temperature?
Not recommended. GCL has poor high-temperature performance:
- Bentonite can dehydrate at >40°C, reducing swell capacity by 50-80%
- Geotextile components may degrade faster at elevated temperature
- Dehydrated GCL cannot self-heal punctures
For high-temperature applications requiring secondary barrier, use double HDPE liner (upper and lower) with leak detection layer.
QA Requirements for High-Temperature Service
| QA Element | Specification | Verification Method |
|---|---|---|
| Installation slack | 1-2% measured | Measure panel length vs straight-line distance, photograph waves |
| Seam orientation | Parallel to slope contours | Visual inspection, as-built drawings |
| HP-OIT material certification | ≥600 min (≥800 min for >50°C) | Manufacturer certificate + independent spot test |
| Weld parameter qualification | At ambient temperature (not in lab) | Trial seam destructive testing on-site |
| Welding time restriction | Early morning (6-9 AM) for >35°C ambient | Work logs, temperature monitoring |
| Non-destructive testing (NDT) | 100% of all seams | Spark test (ASTM D6747) or vacuum box (ASTM D5641) |
| Destructive testing | 1 per 100m (min) at high-temperature zones | Shear & peel per ASTM D6392 |
| HP-OIT monitoring during service | Every 1-2 years for >40°C continuous | Retrieved samples |
| Documentation retention | Minimum 30 years | CQA files, as-built |
Critical Statement
High-temperature seam separation is preventable with proper design and installation. Installation slack (1-2% extra length) is the single most important prevention measure — it costs nothing and prevents 90-95% of thermal contraction failures. Seam orientation parallel to slope contours is mandatory. Welding during peak heat (>35°C ambient) requires parameter adjustment (reduce wedge temp 5-10°C, increase speed 10-20%) or reschedule to early morning. For continuous service >40°C, specify HP-OIT≥600 min (≥800 min for >50°C). Quality assurance — slack verification, seam orientation, HP-OIT certification, and parameter qualification — determines high-temperature service life.
1️⃣2️⃣ FAQ Section
Q1: What causes HDPE liner seam separation at high temperature?
Two primary mechanisms: (1) Thermal contraction — liner shrinks when cooling from peak temperature, inducing tensile stress at seams. (2) Thermal degradation — antioxidant depletion (HP-OIT) reduces seam strength over time.
Q2: What is the coefficient of thermal contraction for HDPE?
α ≈ 0.2 mm/m/°C (2.0 × 10⁻⁴ /°C per ASTM E831). For a 50m slope cooling 40°C, contraction = 0.2 × 50,000 × 40 = 400mm.
Q3: How much installation slack is required for high-temperature service?
Minimum 1% (10mm per meter). For service >40°C or temperature swings >40°C, specify 2% (20mm per meter). Slack is measured as extra length beyond straight-line distance between anchorages.
Q4: How does ambient temperature affect hot wedge welding parameters?
35°C: reduce wedge temp 5-10°C, increase speed 10%. <10°C: increase wedge temp 5-10°C, reduce speed 10%, preheat seam area. Always qualify parameters on-site.
Q5: What HP-OIT is required for high-temperature service (>40°C)?
At 40-50°C continuous: HP-OIT≥600 min (ASTM D5885). At 50-60°C: HP-OIT≥800 min. Standard HP-OIT 400 min (GRI-GM13) depletes in 2-4 years at 50°C.
Q6: What is the maximum continuous operating temperature for HDPE?
For structural integrity: 60°C maximum continuous. Above 50°C, HP-OIT depletion accelerates exponentially. For service life >5 years at >40°C, specify HP-OIT≥600 min.
Q7: How does seam orientation affect thermal contraction stress?
Seams parallel to slope contours experience shear stress only. Seams perpendicular to slope contours experience full tensile contraction force (2-3x higher failure risk). Perpendicular seams are not permitted in high-temperature climates.
Q8: Can seam separation be repaired after failure?
Yes. Cut out failed section minimum 300mm beyond separation. Re-install panels with 2% slack. Weld using high-temperature parameters (reduce wedge temp 5-10°C if welding in heat). Test 100% of repair with vacuum box.
Q9: How often should HP-OIT be monitored in high-temperature service?
For continuous service >40°C: every 1-2 years. For cyclic high temperature (desert): every 2-3 years. Retrieve samples from representative locations (high-temperature zones, seams). Replace when HP-OIT <100 min.
Q10: Does thicker HDPE perform better at high temperature?
Not necessarily. Contraction force is proportional to thickness (2.5mm creates 67% more seam tension than 1.5mm). Thicker liner provides longer antioxidant depletion time. Installation slack is more important than thickness for preventing thermal contraction failure.
Q11: What are the destructive testing acceptance criteria for high-temperature service?
ASTM D6392: shear ≥350 N/50mm (1.5mm), peel ≥350 N/50mm. Failure mode must be parent material stretch. For service >40°C, test samples at operating temperature or use reduced acceptance (20% reduction with engineering judgment).
Q12: When is HDPE not recommended for high-temperature service?
For continuous service >60°C, HDPE is not recommended. Consider EPDM (80°C max), PVDF (150°C max), or cooling the fluid before liner contact. For intermittent >60°C peaks (<1 hour/day, <60°C average), HDPE may be acceptable with HP-OIT≥800 min and monitoring.
1️⃣3️⃣ Technical Conclusion
High-temperature HDPE liner seam separation is preventable with proper design, installation, and material specification. Thermal contraction (α ≈ 0.2 mm/m/°C) causes 50-60% of failures. A 100m liner cooling 40°C shrinks 800mm, creating seam tension of 8.4 kN/m — exceeding typical peel strength (3.5-5.0 kN/m) by 1.7-2.4x. Installation slack (1-2% extra length) absorbs contraction and is the single most effective prevention measure. Without slack, even high HP-OIT HDPE will fail at seams under thermal cycling.
Hot wedge welding parameters require adjustment at high ambient temperature (>35°C). Reduce wedge temperature 5-10°C, increase speed 10-20%, and weld early morning (6-9 AM) to avoid peak surface temperatures. Seam orientation must be parallel to slope contours — perpendicular seams experience full contraction force and have 2-3x higher failure risk. Parameter qualification must be performed on-site at ambient temperature, not in laboratory conditions.
HP-OIT depletion accelerates exponentially at high temperature (Arrhenius: rate doubles per 10°C). At 50°C continuous service, HP-OIT 400 min depletes in 1.2-1.8 years vs 15-20 years at 20°C. For service >40°C, specify HP-OIT≥600 min (≥800 min for >50°C). Implement HP-OIT monitoring every 1-2 years with retrieved samples. Replace liner when HP-OIT <100 min or tensile elongation <100%.
For the practicing engineer: specify minimum 1-2% installation slack (measured during CQA), require seam orientation parallel to slope contours, verify welding parameters at ambient temperature before production, specify HP-OIT≥600-800 min for continuous >40°C service, implement HP-OIT monitoring, and retain CQA documentation minimum 30 years. The cost of prevention (slack + orientation + HP-OIT upgrade = 10,000−20,000)avoids3,000,000-10,000,000 failure consequences (150-500x ROI). Installation slack costs nothing but is most effective. High-temperature seam separation is predictable, preventable, and manageable — but only with correct specification and verification discipline. “Tight and smooth” is incorrect instruction for high-temperature climates — it guarantees seam failure.
📚 References
[1] ASTM E831 (2019). “Standard Test Method for Linear Thermal Expansion of Solid Materials by Thermomechanical Analysis.” ASTM International.
[2] ASTM D6392 (2024). “Standard Test Method for Determining the Integrity of Field Seams Used in Joining Geomembranes by Chemical Fusion Methods.” ASTM International.
[3] ASTM D5885 (2024). “Standard Test Method for Oxidative Induction Time of Polyolefin Geosynthetics by High-Pressure Differential Scanning Calorimetry.” ASTM International.
[4] ASTM D5397 (2020). “Standard Test Method for Evaluation of Stress Crack Resistance of Polyolefin Geomembranes.” ASTM International.
[5] ASTM D4218 (2024). “Standard Test Method for Carbon Black Content in Polyethylene Geomembranes.” ASTM International.
[6] ASTM D6747 (2024). “Standard Test Method for Testing Geomembrane Seams Using the Spark Test.” ASTM International.
[7] ASTM D5641 (2024). “Standard Test Method for Vacuum Box Testing of Geomembrane Seams.” ASTM International.
[8] GRI White Paper #35 (2018). “UV Stability and Weathering of Geomembranes.” Geosynthetic Institute.
[9] GRI White Paper #41 (2015). “Welding Parameters and Environmental Effects.” Geosynthetic Institute.
[10] GRI White Paper #42 (2016). “Thermal Expansion and Contraction of Geomembranes.” Geosynthetic Institute.
[11] GRI-GM13 (2025). “Standard Specification for Smooth High Density Polyethylene (HDPE) Geomembranes.” Geosynthetic Institute.
[12] Koerner, R.M., Hsuan, Y.G. (2016). “Lifetime prediction of geosynthetics.” Geosynthetics International, 23(4), 237-253. DOI: 10.1680/jgein.15.00045
[13] Rowe, R.K., Islam, M.Z., Hsuan, Y.G. (2014). “Effects of thickness on the aging of HDPE geomembranes.” Geotextiles and Geomembranes, 42(5), 430-441. DOI: 10.1016/j.geotexmem.2014.08.001
📚 Related Technical Guides
Pillar Pages
- Subgrade Puncture HDPE Guide 2026 | Prevention & Repair
- Poor Welding Quality in HDPE Seams Guide 2026 | Field Identification & CQA
- Desert Climate HDPE Liner Shrinkage Guide 2026 | Root Cause & Prevention
- Hot Wedge High-Temperature Parameters Guide | >35°C Ambient Adjustments — Coming soon
- HP-OIT High-Temperature Guide | ASTM D5885 for >40°C Service — Coming soon
By Application
- Landfill Base Liners: 1.5-2.5mm HDPE for Subtitle D/C Compliance
- Heap Leach Pads: 1.5-2.0mm HDPE Double Liner Systems
- Wastewater Lagoons: 1.5-2.0mm HDPE for Municipal/Industrial Service
- Biogas Digesters: 1.5-2.0mm HDPE with Gas Tightness Requirements
- Mining Tailings Dams: 1.5-2.5mm HDPE for Acid Mine Drainage
- High Temperature Industrial Ponds: 2.0-2.5mm HDPE with Stabilizers
- High UV Regions: 1.0-1.5mm HDPE with HP-OIT≥400
- Long-Term Durability: HP-OIT and NCTL for 30-100 Year Life
